Why Choose VA Segment LCDs?
VA Segment LCDs are an excellent choice when:
- High contrast and readability are essential, such as in low-light or bright environments.
- A modern and stylish appearance is desired, especially for consumer-facing devices.
- Energy efficiency is a priority, making them suitable for battery-powered or portable devices.
Their combination of functionality, reliability, and aesthetic appeal makes them a popular choice in industries like consumer electronics, automotive, medical, and smart home technology.
Detailed Parameters:

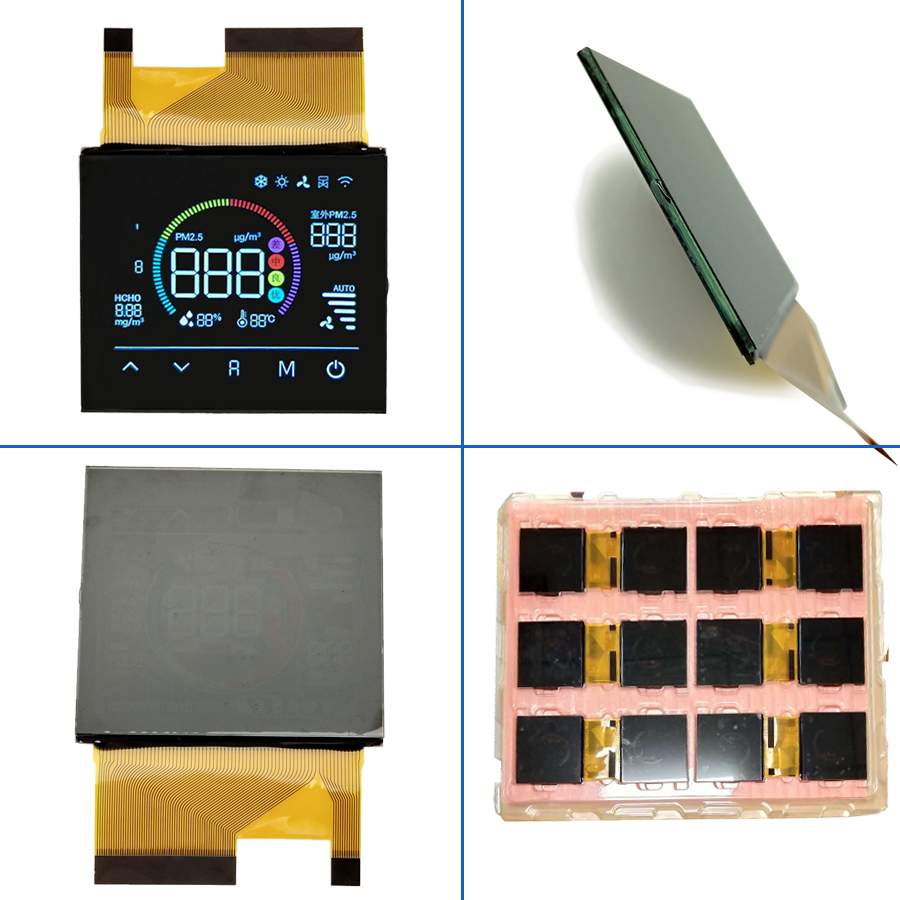

| Model number | GY06254NM-12 | LCD type | Segmented Display |
| Outline Dimension | 67.6(W)* 63.0(H)* 2.8(T) mm | Display mode | VA, Negative |
| LCD viewing area | 63.6(W)* 52.5(H) mm | Polarizer type | Transmissive |
| Driver IC | / | LED backlight | White |
| Drive method | 1/4 Duty, 1/3 Bias | Working voltage | 4.5V |
| Viewing angle | 6 O'clock | Connection Way | FPC, 72 numbers |
| Operate temperature | -20℃~+70℃ | Storage temperature | -30~+80℃ |
Notices: The differences between TN, STN, and VA LCD types?
TN (Twisted Nematic) LCD screens, the twisted orientation of the liquid crystal molecules is deflected by 90°. The display content is relatively simple, and the main features are relatively black fonts, high contrast, low power consumption, and driving voltage, but a small viewing angle. Common applications are clock products, calculators, etc.
STN (Super Twisted Nematic) LCD screens, the liquid crystal rotates 180~270 degrees in the LCD screen, the viewing angle is better, and there are generally gray films, yellow-green films, and blue films. Widely used in high-channel COB/COG, such as communication equipment, etc.
VA (Vertical Alignment) LCD screens, black background, and color patterns, high contrast, can achieve a multi-color silk screen display effect, and have certain requirements for driving voltage. It is mostly used for segment COB and low-channel drive.
FAQ
1. Q: What products can you provide?
A. 1) Custom Segment LCD Display;
2) Monochrome Graphic/Dot Matrix LCD Display Modules;
3) Micro OLED Display Modules;
4) Color TFT LCD Display Panels;
5) LED Backlights.
2. Q: What is the process for custom samples?
A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.
3. Q: How long can I get the custom samples?
A: Different product types will take different times. Usually, it will take about 30-35 days.
4. Q: Can I get free samples?
A: We would like to provide 3-5 pcs free samples after tooling.
5. Q: What is the minimum order quantity?
A: MOQ mainly depends on LCD sizes.
6. Q: How long is it for mass production?
A: Usually 35-45 days, it depends on your part number.
7. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
