4.8V VA LCD Module LCM Black Color Segments For Electroacupuncture Device

Ask Lasest Price
Brand Name :	Genyu
Model Number :	GY0602-23144A1
Certification :	RoHS, ISO9001:2015
Price :	Negotiation
Payment Terms :	T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability :	300K pcs/ Month
Delivery Time :	38-40 days

Add to Cart

Product Details
Company Profile

4.8V VA LCD Module LCM Black Color Segments For Electroacupuncture Device

VA LCD Display Module LCM Black Color Segments for Electroacupuncture Device

A VA LCD (Vertical Alignment Liquid Crystal Display) is a type of LCD technology where liquid crystals are naturally aligned vertically to the glass substrate when no voltage is applied. This alignment blocks light from passing through, creating deep black levels. When a voltage is applied, the crystals tilt, allowing light to pass through and create the desired image.

VA LCDs are known for their excellent contrast ratios, better color reproduction, and improved viewing angles compared to older LCD technologies like TN (Twisted Nematic).

Detailed Parameters:

Model number	GY0602-23144A1	LCD type	Segmented Display
Outline Dimension	133(W)* 114.3(H)* 7.7(T) mm	Display mode	VA, Negative
LCD viewing area	130(W)* 80(H) mm	Polarizer type	Transmissive
Driver IC	HT1621	LED backlight	White
Drive method	1/4 Duty, 1/3 Bias	Working voltage	5.0V
Viewing angle	6 O'clock	Connection Way	COB+PIN, 35 numbers
Operate temperature	0℃~+50℃	Storage temperature	-10~+60℃

4.8V VA LCD Module LCM Black Color Segments For Electroacupuncture Device

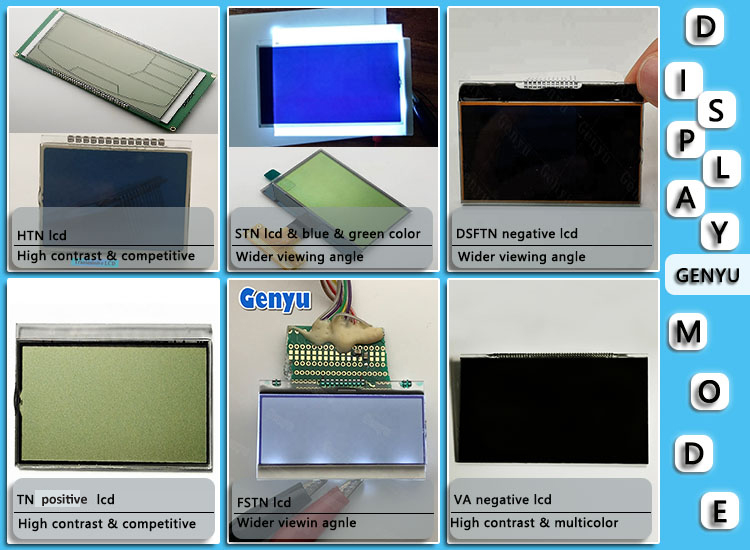

Comparison with Other LCD Technologies:

Features	VA LCD	TN LCD	IPS LCD
Contrast Ratio	High	Low	Moderate
Color Accuracy	Good	Moderate	Excellent
Viewing Angles	Moderate to Wide	Narrow	Wide
Response Times	Moderate	Fast	Moderate
Cost	Moderate	Low	High

4.8V VA LCD Module LCM Black Color Segments For Electroacupuncture Device

FAQ

1. Q: What products can you provide?

A. 1) Custom Segment LCD Display;

2) Monochrome Graphic/Dot Matrix LCD Display Modules;

3) Micro OLED Display Modules;

4) Color TFT LCD Display Panels;

5) LED Backlights.

2. Q: What is the process for custom samples?

A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.

3. Q: How long can I get the custom samples?

A: Different product types will take different times. Usually, it will take about 30-35 days.

4. Q: Can I get free samples?

A: We would like to provide 3-5 pcs free samples after tooling.

5. Q: What is the minimum order quantity?

A: MOQ mainly depends on LCD sizes.

6. Q: How long is it for mass production?

A: Usually 35-45 days, it depends on your part number.

7. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.
