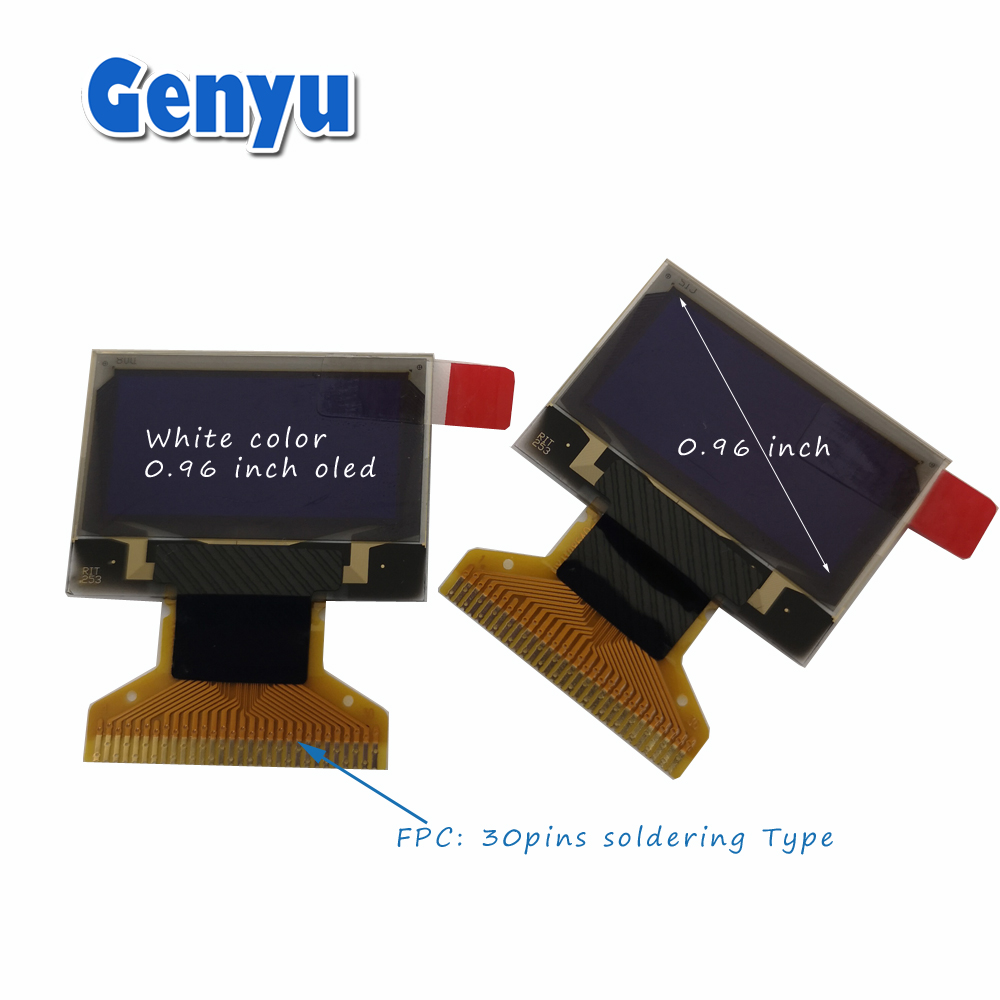

0.96 Inch OLED Display White Characters 128x64 Pixels SSD1306 30pin FPC

Key Specifications:

• Display Size: 0.96 inches diagonal.

• Resolution: 128x64 pixels.

• Display Type: Monochrome (typically white, blue, or yellow).

• Pixel Type: OLED (Organic Light Emitting Diode) – self-emissive (no backlight required).

• Driver IC: SSD1306.

• Interface: I²C (default), some modules support SPI.

• Voltage: Typically operates at 3.3V or 5V.

• Brightness: Varies depending on the color, but typically around 80-120 cd/m².

• Viewing Angle: Wide (up to 160°) due to the nature of OLED technology.

• Power Consumption: Low, especially when displaying black (since OLED pixels are off for black).

Detailed Parameters:

OLED Screens ( 0.42 inch~3.12 inch ):

We mainly develop small-middle sizes OLED displays, including 0.42", 0.49", 0.66", 0.78", 0.87", 0.91", 0.96", 1.12", 1.21", 1.3", 1.5", 1.54", 1.92", 2.08", 2.23", 2.42", 2.7", and 3.12", etc.

Advantages of the SSD1306 OLED Display:

• Compact size: Perfect for small embedded projects.

• Low power consumption: Ideal for battery-powered applications.

• High contrast: True blacks and crisp text.

• Wide viewing angle: Easy to read from any angle.

• Ease of use: Simple to interface with microcontrollers using I²C or SPI.

Disadvantages:

• Monochrome: Most displays are limited to a single color (although color variants exist, they're less common).

• Limited resolution: While 128x64 is decent for small displays, it may not be sufficient for more complex graphics or large amounts of text.

• Lifetime: OLED screens can degrade over time, especially with prolonged use at high brightness.
