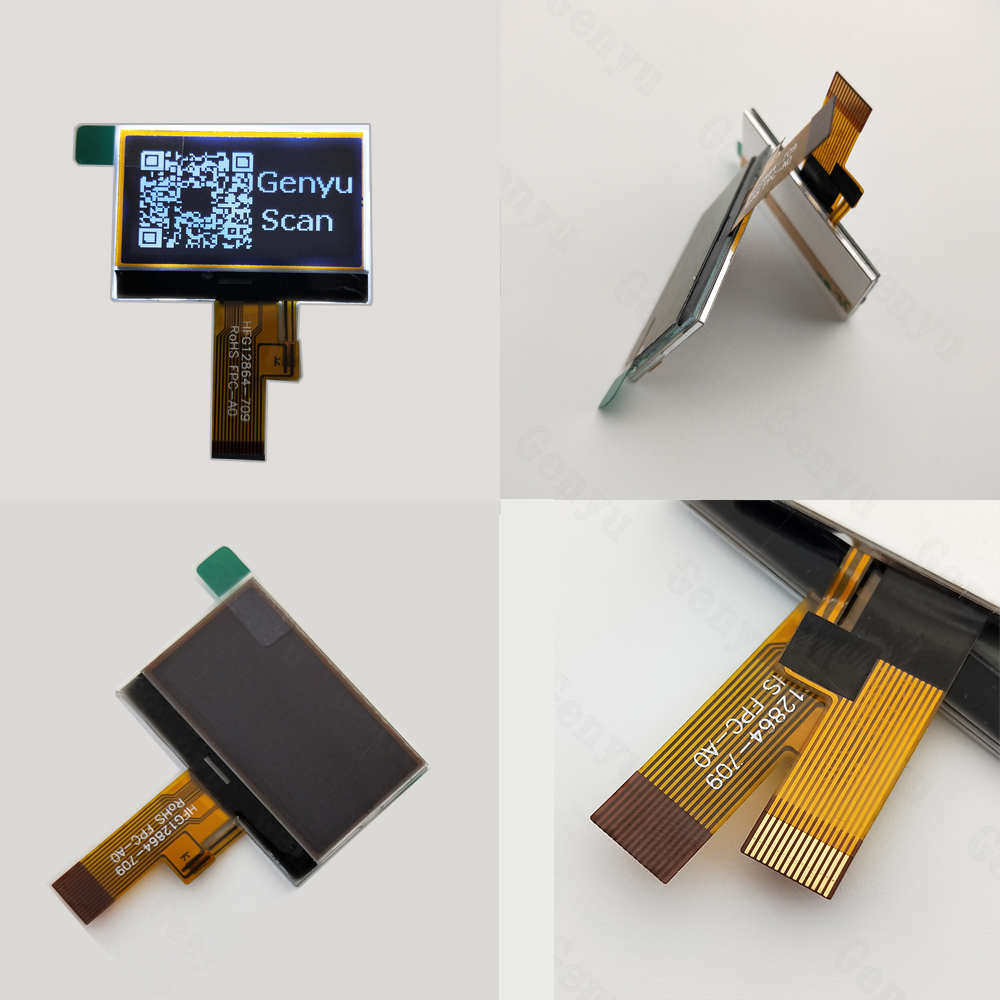

1.46 Inch 128x64 Graphic LCD Display FSTN Negative UC1701 14PIN SPI Interface

Ask Lasest Price
Brand Name :	Genyu
Model Number :	GY12864-780
Certification :	RoHS, ISO9001: 2015
Price :	Negotiable
Payment Terms :	T/T, Paypal, Western Union, MoneyGram, Paypal
Supply Ability :	400K pcs/ Month
Delivery Time :	35-40 days

Add to Cart

Product Details
Company Profile

1.46 Inch 128x64 Graphic LCD Display FSTN Negative UC1701 14PIN SPI Interface

1.46 Inch 128x64 Graphic LCD Display FSTN Negative UC1701 14PIN SPI Interface

Key Features:

128x64 Resolution:
- The display has 128 horizontal pixels and 64 vertical pixels, which allows it to show basic graphics, icons, alphanumeric text, and simple user interfaces. It's typically used for small embedded devices, sensors, and handheld gadgets.
FSTN (Film Super Twisted Nematic):
- FSTN is an enhancement of STN (Super Twisted Nematic) technology. The FSTN layer improves the contrast and viewing angles of the display. It is commonly used in monochrome LCDs for better readability compared to traditional TN (Twisted Nematic) displays.
- The FSTN technology allows for a more crisp and clear display with better contrast and wider viewing angles, making the display easier to read in a variety of lighting conditions.
Negative Display:
- In a negative display, the text is typically shown in light color (e.g., white) on a dark background (e.g., black).
- This is the opposite of a positive display, where dark text is shown on a light background.
- Negative FSTN displays are often easier to read in outdoor or bright sunlight conditions due to their reflective nature. They are often used in devices like outdoor handheld meters, industrial equipment, and battery-powered devices that need to be legible in various lighting conditions.

1.46 Inch 128x64 Graphic LCD Display FSTN Negative UC1701 14PIN SPI Interface

Detailed Parameters:

1	Product Name	Monochrome COG Graphic LCD Display
2	Model Number	GY12864-780
3	LCD Type	FSTN(Black), Negative
4	Polarizer Type	Transmissive
5	Viewing Angle	6 O'clock
6	Resolution	128x64 dots
7	Drive Method	1/65 Duty, 1/9 Bias
8	Working Voltage	3.3V
9	Operating Temperature	-20~+70℃
10	Storage Temperature	-30~+80℃
11	FPC Connector	14PIN, ZIF type
12	FPC Pitch	0.5 mm
13	Driver IC	UC1701X
14	Interface	SPI
15	Backlight Type	3-LEDs, White, Parallel
16	Backlight Consumption	VF=3.0V, IF=45mA
16	Outline Dimension	37.75(W)* 25.60(H)* 2.80(T) mm
17	View Area	35.55(W)* 18.70(H) mm
18	Active Area	33.26(W)* 16.62(H) mm
19	Dot Size	0.24(W)* 0.24(H) mm
20	Dot Pitch	0.26(W)* 0.26(H) mm

1.46 Inch 128x64 Graphic LCD Display FSTN Negative UC1701 14PIN SPI Interface

Advantages of FSTN Negative Displays:

Better Readability in Sunlight: The negative display (light text on a dark background) can be easier to read under bright sunlight compared to positive displays.
Power Efficiency: Reflective FSTN technology requires no backlight in bright environments, leading to lower power consumption, making it ideal for battery-operated systems.
Wide Viewing Angles: FSTN technology provides better viewing angles compared to standard TN displays.
Improved Contrast: FSTN negative displays offer improved contrast over traditional TN displays, which improves the clarity of the text and graphics.

1.46 Inch 128x64 Graphic LCD Display FSTN Negative UC1701 14PIN SPI Interface

FAQ=Frequently Asked Questions

1. Q: Where is your factory?

A. Our office is in Shenzhen, Guangdong and our factory is located in Jiangxi Province.

2. Q: What is the process for custom samples?

A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.

3. Q: Can I get free samples?

A: Yes, 5-10 pcs of free samples will be provided after tooling.

4. Q: How long can I expect to get the samples?

A: Different product types will take different times. 2-5 working days for available models, and 28-30 working days for custom models.

5. Q: What is the minimum order quantity?

A: All our models have MOQ requirements, please get in touch with our salesman for detailed information.

6. Q: Can I get a lower price for LCD?

A: Yes, cheaper price with bigger/larger quantities order.

7. Q: How long is it for mass production?

A: Usually 25-40 days. It depends on different order quantities and part numbers.

8. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.

9. Q: Can you provide the technical support?

A: Yes, We will provide detailed specifications and initialization code.
