Name: 312 Inch Blue Color 256x64 OLED Display SSD1322 OLED Display SPI Interface
Brand: Genyu
Price: 1 USD

3.12 Inch Blue Color 256x64 OLED Display SSD1322 OLED Display SPI Interface

Ask Lasest Price

Brand Name :

Genyu

Model Number :

GY25664-50

Certification :

RoHS, ISO9001: 2015

Price :

Negotiable

Payment Terms :

T/T, Paypal, Western Union, MoneyGram, Credit Card

Supply Ability :

150K pcs/ Month

Delivery Time :

7-15 days

3.12 Inch Blue Color 256x64 OLED Display SSD1322 OLED Display SPI Interface

3.12 Inch OLED Display Module Blue Color 256x64 Dots Parallel and SPI Interface

PMOLED Advantages:

Low power consumption, making them ideal for battery-powered applications.
High contrast and true blacks, improving readability and visual clarity.
Simple design with fewer components and cheaper production costs.
Thin, flexible, and compact, ideal for portable and wearable devices.
Wide viewing angles and quick response times for most low-complexity applications.
No backlight is required, contributing to the efficiency and simplicity of the design.
Durability and resistance to screen burn-in make them reliable for static or minimal-movement visuals.

Detailed Parameters:

1	Brand Name	Genyu
2	Model Number	GY25664-50
3	Display Mode	OLED(Organic Light Emitting Diode)
4	Display Color	Blue
5	Panel Size	3.12 Inch
6	Dot Matrix	256*64 Pixels
7	Module Size	100.5(W) x 33.5(H) mm
8	View Area	78.80(W) x 21.18(H) mm
9	Active Area	76.78(W) x 19.18(H) mm
10	Drive IC	SSD1322
11	Interface	6800/8080 Parallel and SPI
12	Operating Temperature	-40~+85℃
13	Drive Voltage	3.0V
14	Pinout	16 numbers
15	PIN Pitch	2.54 mm

3.12 Inch Blue Color 256x64 OLED Display SSD1322 OLED Display SPI Interface

OLED Screens ( 0.42 inch~3.12 inch ):

We mainly develop small-middle sizes OLED displays, including 0.42", 0.49", 0.66", 0.78", 0.87", 0.91", 0.96", 1.12", 1.21", 1.3", 1.5", 1.54", 1.92", 2.08", 2.23", 2.42", 2.7", and 3.12", etc.

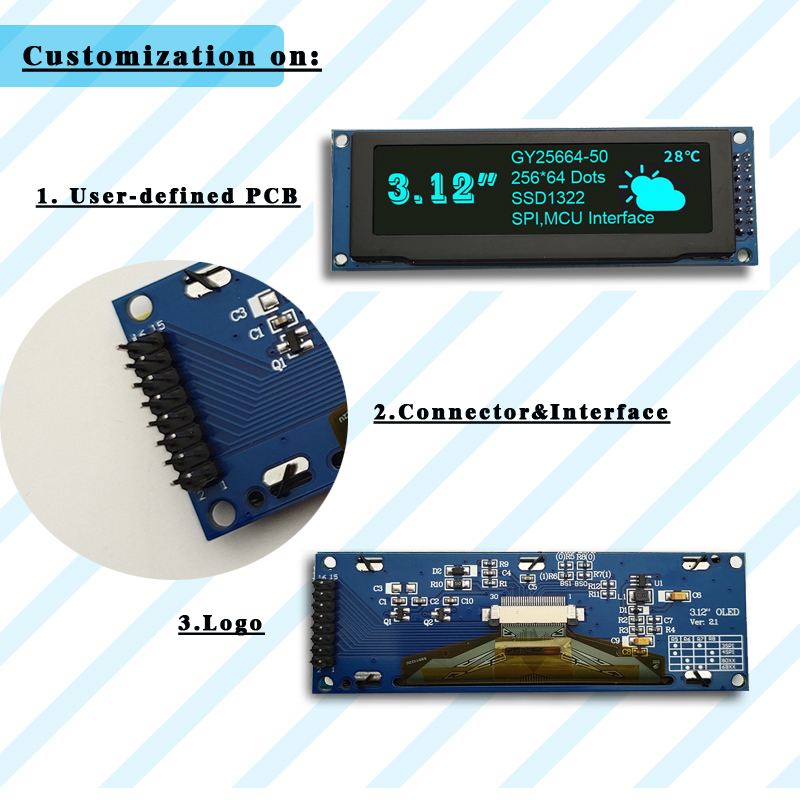

We can customize the FPC, Interface, Touch Panel, and PCB board based on your demands.

1. Rectangular Shape

2. Square Shape

3. Bar Type

3.12 Inch Blue Color 256x64 OLED Display SSD1322 OLED Display SPI Interface

How PMOLED Works:

Pixels in a PMOLED display are organized in a grid of rows and columns.
Passive matrix addressing means that the rows and columns are activated in sequence (one at a time).
The intersection of the activated row and column determines which pixel is turned on.
Time multiplexing ensures that the display appears to be fully lit by cycling through the rows quickly.
A controller IC manages the scanning, pixel activation, and timing for the display.

3.12 Inch Blue Color 256x64 OLED Display SSD1322 OLED Display SPI Interface

Common Applications:

1. Medical Devices

Health Monitors: Devices like blood pressure monitors, pulse oximeters, or ECG monitors can use a 3.12-inch OLED to display real-time measurements, graphs, and other vital statistics with high clarity and fast response.
Personal Health Devices: Portable health devices such as digital thermometers, glucose meters, and weight scales can benefit from this display size to show clear and easy-to-read information.

2. Consumer Electronics

Portable Handheld Devices: Devices like digital cameras, portable game consoles, and media players can use a 3.12-inch OLED screen to display images, videos, or interactive controls. OLED’s sharp contrast and bright display make them great for handheld entertainment systems.
E-Readers/Portable Displays: For reading or displaying text and graphics, a 3.12-inch OLED screen could be used in compact e-readers or information kiosks, offering high contrast for better text readability.

2. Test Equipment and Instrumentation

Multimeters: A digital multimeter or oscilloscope can use a 3.12-inch OLED to show measurement readings clearly, such as voltage, current, resistance, and other important parameters.
Signal Analyzers: For test and diagnostic equipment, OLED displays allow engineers to quickly access data readings such as signal strength, frequency, or waveform shape in a format that is easy to read.

3. Industrial and Commercial Devices

Point-of-Sale (POS) Systems: Many POS terminals or receipt printers can use a 3.12-inch OLED screen to display transaction data, product information, and customer details in an easy-to-read format.
Factory Automation: Industrial controllers and machine monitoring systems can use an OLED display for showing device status, error messages, or system diagnostics. This allows workers to monitor the system in real-time, improving productivity and troubleshooting.

3.12 Inch Blue Color 256x64 OLED Display SSD1322 OLED Display SPI Interface

FAQ

1. Q: What products can you provide?

A. 1) Custom Segment LCD Display;

2) Monochrome Graphic/Dot Matrix LCD Display Modules;

3) Micro OLED Display Modules;

4) Color TFT LCD Display Panels;

5) LED Backlights.

2. Q: Where is your factory?

A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.

3. Q: Will you offer a free sample?

A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.

4. Q: What is the delivery time?

A: For small orders: 7-15 days. For mass production: 25-30 days.

5. Q: Can I get a lower price for OLED displays?

A: Yes, cheaper price with bigger/larger quantities order.

6. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.
