1.3 Inch I2C OLED Display Module White Color 128x64 Resolution SH1106

Ask Lasest Price
Brand Name :	Genyu
Model Number :	GY12864-96
Certification :	RoHS, ISO9001: 2015
Price :	Negotiable
Payment Terms :	T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability :	150K pcs/ Month
Delivery Time :	7-15 days

Add to Cart

Product Details
Company Profile

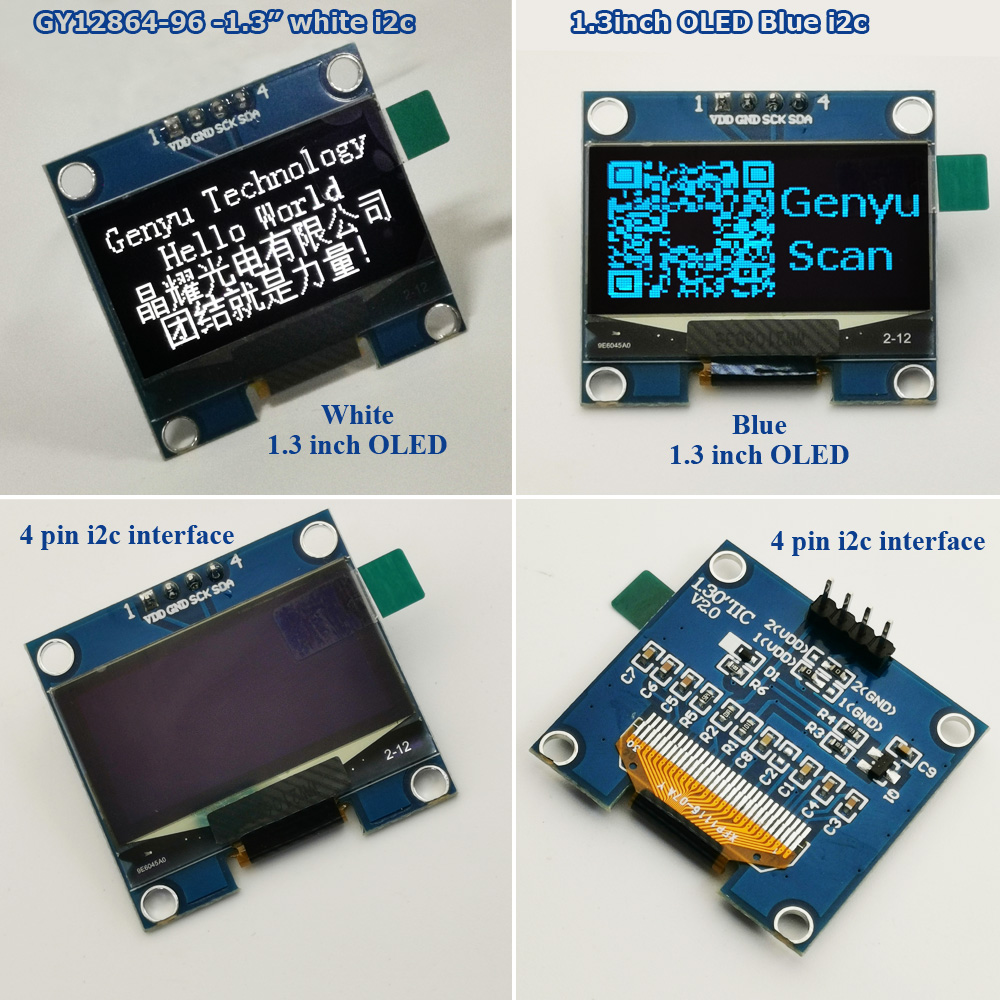

1.3 Inch I2C OLED Display Module White Color 128x64 Resolution SH1106

1.3 Inch OLED Display Module White Color 128x64 Resolution SH1106 I2C Interface

Key Features:

Display Size: 1.3 inches (diagonal).
Resolution: 128x64 pixels (monochrome).
Controller: SH1106.
Interface: I2C (or SPI, but I2C is more common for this display).
Power Consumption: Very low, especially when displaying darker content.
Excellent Contrast: OLED technology provides perfect black levels and high contrast ratios.
Color: Typically black/white, but other color combinations may exist (blue/white).

Detailed Parameters:

1	Brand Name	Genyu
2	Model Number	GY12864-96
3	Display Mode	OLED(Organic Light Emitting Diode)
4	Color	White
5	Size	1.3 Inch
6	Dot Matrix	128*64 Pixels
7	Module Size	35.5(W) x 33.5(H) x 11.3(D) mm
8	View Area	31.42 (W) x 16.70(H) mm
9	Active Area	29.42 (W) x 14.70(H) mm
10	Dot Size	0.21(W)*0.21(H) mm
11	Dot Pitch	0.23(W)*0.23(H) mm
12	Drive IC	SH1106G
13	Interface	I2C
14	FPC Connector	4PIN, soldering
15	PIN Pitch	2.54 mm
16	Drive Method	VCC=3.3V~4.2V
17	Viewing Angle	160°

1.3 Inch I2C OLED Display Module White Color 128x64 Resolution SH1106

OLED Screens ( 0.42 inch~3.12 inch ):

We mainly develop small-middle sizes OLED displays, including 0.42", 0.49", 0.66", 0.78", 0.87", 0.91", 0.96", 1.12", 1.21", 1.3", 1.5", 1.54", 1.92", 2.08", 2.23", 2.42", 2.7", and 3.12", etc.

We can customize the FPC, Interface, Touch Panel, and PCB board based on your demands.

1.3 Inch I2C OLED Display Module White Color 128x64 Resolution SH1106

SH1106 vs SSD1306:

While the SH1106 and SSD1306 are similar in many ways, there are a few differences:

Memory Organization: The SH1106 has a different memory layout compared to the SSD1306, which can affect the way images and text are rendered.
Initialization: The SH1106 may require a slightly different initialization routine compared to the SSD1306, which means that some libraries that work with SSD1306 may not work properly with SH1106 without some adjustments.
Controller Support: The SH1106 supports both I2C and SPI modes, but typically, I2C is used for smaller embedded projects.

Pinout for 1.3-inch SH1106 OLED (I2C):

For a typical 1.3-inch SH1106 OLED module with an I2C interface, the pinout is generally as follows:

VCC: Power supply (typically 3.3V or 5V, depending on the display model).
GND: Ground.
SCL: Serial Clock Line (I2C).
SDA: Serial Data Line (I2C).
RES (Reset): Reset pin (optional for I2C communication).
DC (Data/Command): Data/Command pin (typically tied to ground for I2C).
