    High Contrast 1.54'' OLED Display White Color 128x64 Resolution SPD0301 24pin FPC

    Ask Lasest Price
    Brand Name : Genyu
    Model Number : GY12864-12
    Certification : RoHS, ISO9001: 2015
    Price : Negotiable
    Payment Terms : T/T, Paypal, Western Union, MoneyGram, Credit Card
    Supply Ability : 150K pcs/ Month
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    High Contrast 1.54'' OLED Display White Color 128x64 Resolution SPD0301 24pin FPC

    1.54 Inch OLED Display White Color 128x64 Resolution SPD0301 24pin FPC

    Key Features of the 1.54-inch PMOLED 128x64 Display:

    • Display Size: 1.54 inches (diagonal).

    • Resolution: 128x64 pixels (monochrome).

    • Technology: PMOLED (Passive Matrix OLED), typically black-and-white.

    • Controller IC: Common controllers for such displays include SSD1309 or other similar drivers.

    • Interface: Most commonly I2C or SPI.

    • Low Power Consumption: OLED technology is energy-efficient, especially when displaying dark content.

    • High Contrast: OLED displays provide true blacks and high contrast, which results in clear visibility.

    Detailed Parameters:

    1 Brand Name Genyu
    2 Model Number GY12864-12
    3 Display Mode OLED(Organic Light Emitting Diode)
    4 Color White
    5 Size 1.54 Inch
    6 Dot Matrix 128*64 Pixels
    7 Module Size
    42.04(W)x27.22(H)x1.41(D) mm
    8 View Area 37.052 (W) x 19.516(H) mm
    9 Active Area
    35.052(W) x17.516(H) mm
    10 Dot Size 0.254(W)*0.254(H) mm
    11 Dot Pitch 0.274(W)*0.274(H) mm
    12 Drive IC SPD0301ZD
    13 Interface
    6800/8080 interface, 4 wire serial interface, I2C
    14 FPC Connector 24PIN, socket type
    15 FPC Pitch 0.5 mm
    16 Drive Method VDD=1.65V~3.3V, Vin=11.5~12.5V
    17 Viewing Angle 160°

    High Contrast 1.54'' OLED Display White Color 128x64 Resolution SPD0301 24pin FPC

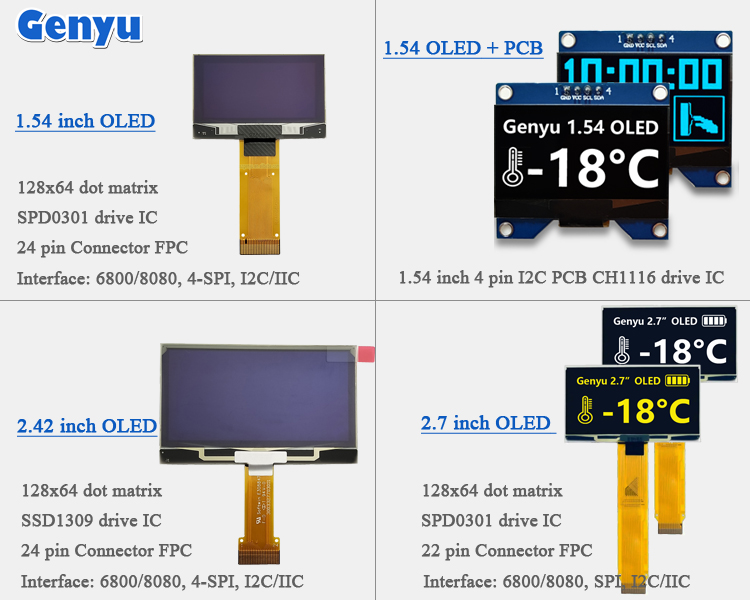

    OLED Screens ( 0.42 inch~3.12 inch ):

    We mainly develop small-middle sizes OLED displays, including 0.42", 0.49", 0.66", 0.78", 0.87", 0.91", 0.96", 1.12", 1.21", 1.3", 1.5", 1.54", 1.92", 2.08", 2.23", 2.42", 2.7", and 3.12", etc.

    We can customize the FPC, Interface, Touch Panel, and PCB board based on your demands.

    High Contrast 1.54'' OLED Display White Color 128x64 Resolution SPD0301 24pin FPC

    Applications of the 1.54-inch PMOLED 128x64 Display:

    • Wearables: This display is often used in smartwatches and fitness trackers for showing time, notifications, and simple data.

    • IoT Devices: PMOLED displays are widely used in Internet of Things (IoT) devices to display sensor data, status information, or user interfaces.

    • Portable Gadgets: Small handheld electronics, such as e-readers, remote controls, and handheld devices, often use these compact displays.

    • Prototyping: In the development and prototyping phases, these displays can be used to visualize data or create a user interface without requiring a large screen.

    FAQ
    1. Q: What products can you provide?

    A. 1) Custom Segment LCD Display;

    2) Monochrome Graphic/Dot Matrix LCD Display Modules;

    3) Micro OLED Display Modules;

    4) Color TFT LCD Display Panels;

    5) LED Backlights.

    2. Q: Where is your factory?

    A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.

    3. Q: Will you offer a free sample?
    A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.
    4. Q: What is the delivery time?
    A: For small orders: 7-15 days. For mass production: 25-30 days.

    5. Q: Can I get a lower price for OLED displays?

    A: Yes, cheaper price with bigger/larger quantities order.

    6. Q: How do you control the quality of products?

    A: All products are 100% inspected before shipment.
