Basic Parameters:
| NO. |
ITEM |
SPECIFICATIONS |
| 1 |
Product Name |

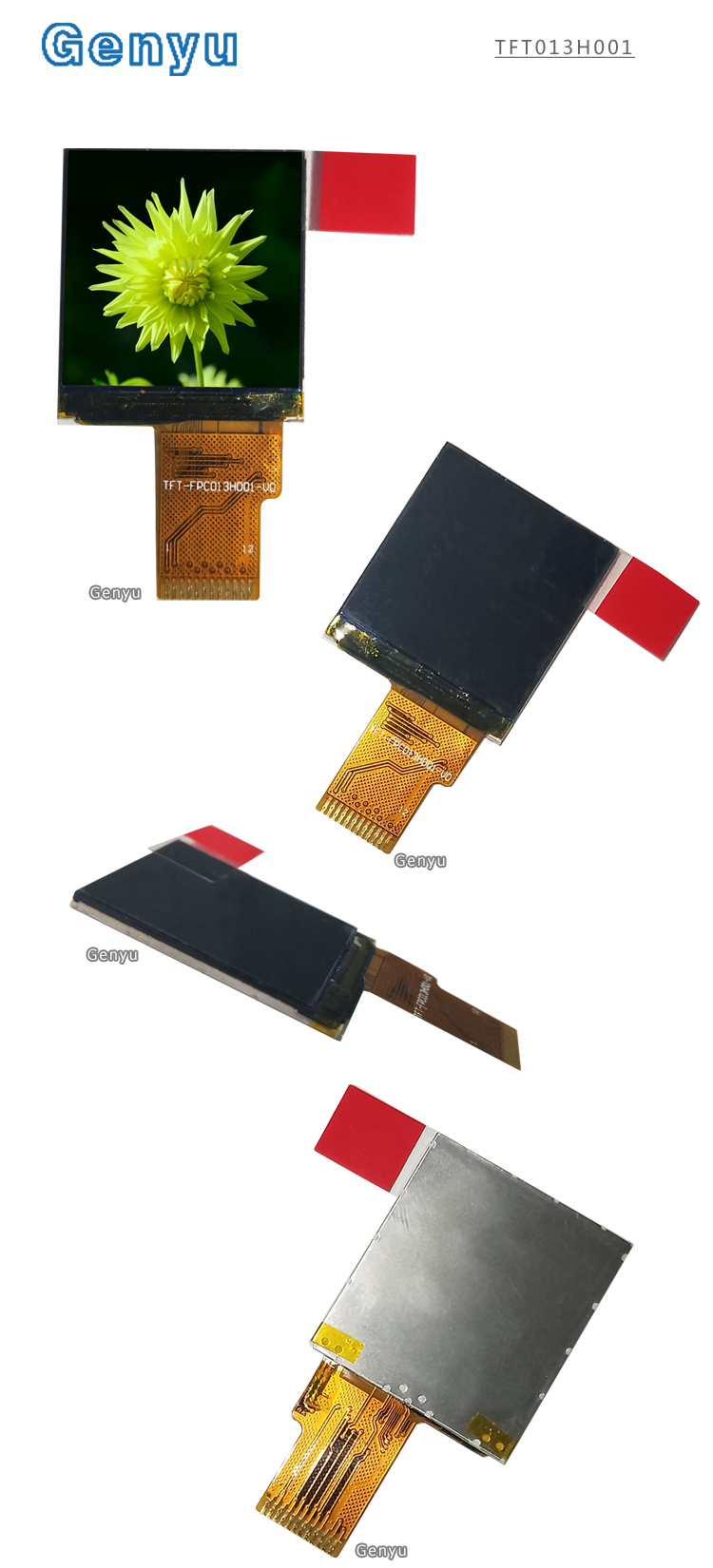

1.3 Inch TFT LCD |
| 2 |
LCD Type |
IPS |
| 3 |
Resolution |
240x240 dots
|
| 4 |
Operating Temperature |
-20~+70℃ |
| 5 |
Storage Temperature |
-30~+80℃ |
| 6 |
FPC Connector |
12PIN, soldering type |
| 7 |
Pitch |
0.8 mm |
| 8 |
Driver IC(COG) |
ST7789V |
| 9 |
Interface |
SPI |
| 10 |
Backlight Type |
2-LED, White, 40mA
|
| 11 |
Outline Dimension |
26.16(H)*29.32(V)*1.92(D) mm
|
| 12 |
Active Area |
23.4(H)*23.4(V) mm
|
TFT Screens ( 0.96 inch~10.1 inch )
We mainly develop TFT LCD screens of small-middle sizes, including 0.96", 1.06", 1.14", 1.28", 1.3", 1.44", 1.54", 1.69", 1.77", 1.83", 1.99", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 5", 5.5", 7", 8" and 10.1", etc.
Also, we can customize the FPC, Interface, Touch Panel, Cover Glass, and Backlight based on your demands.
Please let me know your requirements, we will suggest some models for your optional.
Advantages:
-
Vivid Color Display: TFT screens offer good color reproduction, ideal for devices that require rich graphics, icons, or images.
-
Compact Size: With a diagonal size of just 1.3 inches, these displays are perfect for small-scale embedded projects and portable devices.
-
High Resolution (for Size): A resolution of 240x240 pixels on a 1.3-inch screen results in a high pixel density, making the text and graphics appear sharp and clear.
-
Fast Refresh Rate: TFT screens have fast refresh rates, making them ideal for applications with dynamic content such as animations or real-time data updates.
Disadvantages:
-
Power Consumption: While relatively power-efficient for its size and color capabilities, the TFT backlighting and display can drain power quickly, especially in battery-powered devices.
-
Fragility: As with other TFT displays, these screens are vulnerable to damage from drops or impacts, as the display is typically glass-based.
-
Limited Viewing Angles: TFT displays generally have narrower viewing angles compared to OLED displays, which may affect how the display appears when viewed from different angles.
FAQ
1. Q: Where is your factory?
A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.
2. Q: Will you offer a free sample?
A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.
3. Q: What is the delivery time?
A: For sample order: 2-3 weeks. For mass production: 4-6 weeks.
4. Q: Can you support customization?
A: Yes, the interface, FPC cable, backlight, cover glass, and touch panels can be customized.
5. Q: Can I get a lower price for TFT LCD?
A: Yes, cheaper price with bigger/larger quantities order.
6. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
7. Q: Can you provide the technical support?
A: Yes, We will provide detailed specifications and initialization code.
