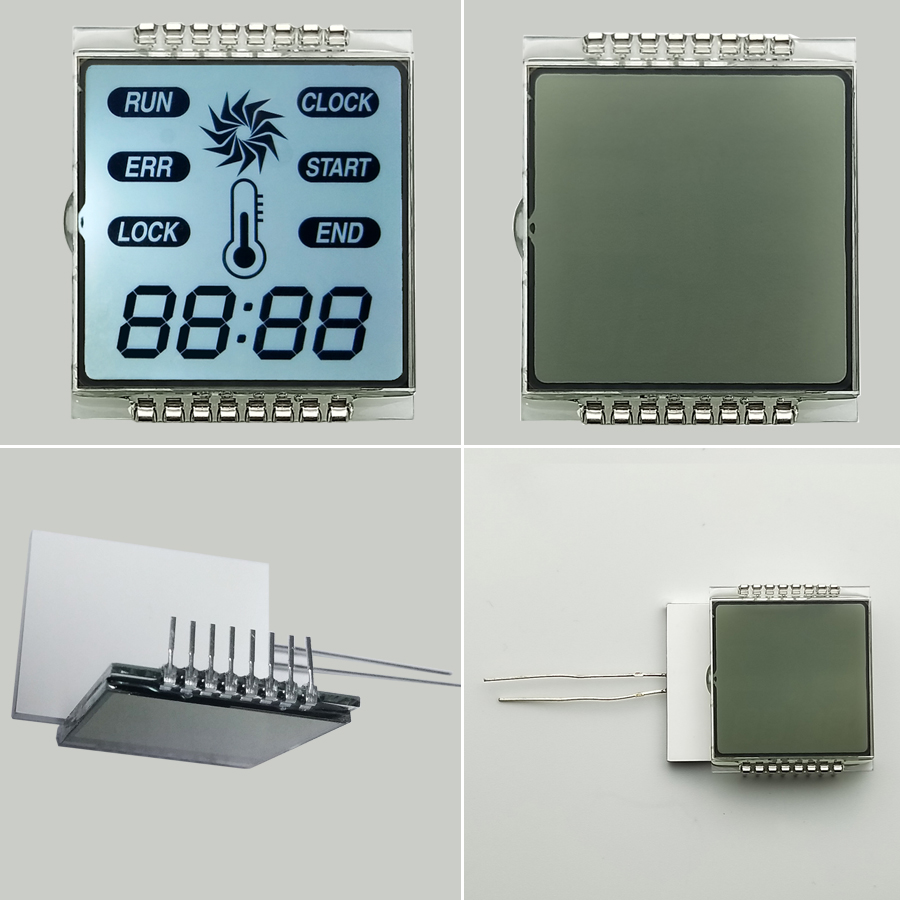

White Backlight 4 Digit Seven Segment Display 3.3V 16PIN Timer LCD Display

Custom LCD HTN White Backlight 4 Digits 7 Segment Display 3.3V 16PIN for Timer

The term Segment LCD likely refers to a Segmented Liquid Crystal Display, a type of LCD technology commonly used in electronic devices. Here's an overview of what it means:

Segment LCD Overview:

Segmented LCDs display information using predefined segments, such as numbers, letters, or symbols.
Commonly found in devices like digital clocks, calculators, thermostats, and basic medical devices (e.g., blood pressure monitors).
Each segment is a separately controlled part of the display, capable of turning on or off to create specific characters or patterns.

Applications of Segment LCDs:

Medical Devices:
- Used in blood pressure monitors, glucose meters, and other diagnostic tools where simple numerical or symbolic displays are sufficient.
Consumer Electronics:
- Found in household devices like ovens, microwaves, and timers.
Industrial Equipment:
- Used in basic display panels for monitoring systems or machinery.

Detailed Parameters:

NO.	ITEM	SPECIFICATIONS
1	Model Number	GY8226A-5HPPS-01
2	LCD Type	HTN positive, Transmissive
3	Viewing Angle	6 O'clock
4	Drive Method	1/4 Duty, 1/3 Bias, 3.3V
5	Operating Temperature	0~+50℃
6	Storage Temperature	-10~+60℃
7	Connector	PIN, 16 numbers
8	Backlight	White
9	LCD Outline Dimension	25(W)* 29(H)* 2.8(T) mm
10	View Area	22(W)* 22(H) mm

White Backlight 4 Digit Seven Segment Display 3.3V 16PIN Timer LCD Display

FAQ

1. Q: What products can you provide?

A. 1) Custom Segment LCD Display;

2) Monochrome Graphic/Dot Matrix LCD Display Modules;

3) Micro OLED Display Modules;

4) Color TFT LCD Display Panels;

5) LED Backlights.

2. Q: What is the process for custom samples?

A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.

3. Q: How long can I get the custom samples?

A: Different product types will take different times. Usually, it will take about 25-30 days.

4. Q: Can I get free samples?

A: Yes, we would like to provide 5-10 pcs of free samples after tooling.

5. Q: What is the minimum order quantity?

A: MOQ depends on LCD sizes.

6. Q: How long is it for mass production?

A: Usually 35-38 days.

7. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.
