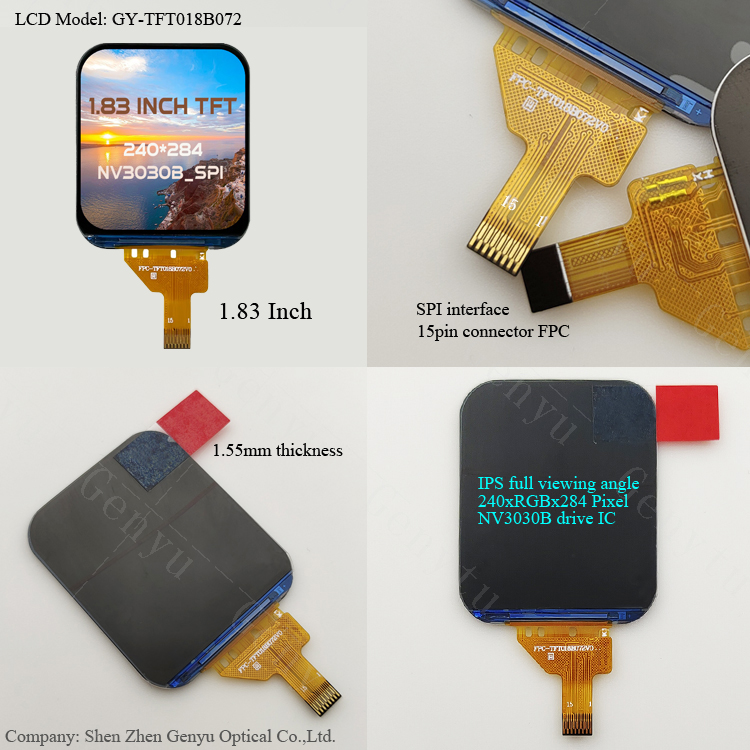

Basic Parameters:
| NO. |
ITEM |
SPECIFICATIONS |
| 1 |
Product Name |
1.83 Inch TFT LCD |
| 2 |
LCD Type |
IPS |
| 3 |
Resolution |
240x284 dots
|
| 4 |
Operating Temperature |
-20~+70℃ |
| 5 |
Storage Temperature |
-30~+80℃ |
| 6 |
FPC Connector |
15PIN, plug-in type |
| 7 |
Driver IC(COG) |
NV3030B |
| 8 |
Interface |
SPI |
| 9 |
Backlight Type |
3-LED, White
|
| 10 |
Backlight Consumption |
IF=60mA, VF=3.2V |
| 11 |
Outline Dimension |
31.39(H)* 39.23(V)* 1.55(D) mm
|
| 12 |
Active Area |
29.52(H)* 34.93(V) mm
|
TFT Screens ( 0.96 inch~10.1 inch )
We mainly develop TFT LCD screens of small-middle sizes, including 0.96", 1.06", 1.14", 1.28", 1.3", 1.44", 1.54", 1.69", 1.77", 1.83", 1.99", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 5", 5.5", 7", 8" and 10.1", etc.
Also, we can customize the FPC, Interface, Touch Panel, Cover Glass, and Backlight based on your demands.
Please let me know your requirements, we will suggest some models for your optional.
Common Applications:
-
Embedded Systems: Used in hobbyist and DIY projects for displaying data, graphics, sensor readings, or user interfaces.
-
Wearables: Ideal for devices like smartwatches, fitness trackers, and health monitoring devices.
-
Portable Electronics: Used in handheld gaming consoles, MP3 players, and portable multimedia devices.
-
Industrial Control Panels: Employed in smaller, low-cost touchscreens for embedded systems or control panels.
-
Toys and Gadgets: Integrated into small toys, gadgets, and interactive devices for displaying simple visuals and interactive UI.
FAQ
1. Q: Where is your factory?
A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.
2. Q: Will you offer a free sample?
A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.
3. Q: What is the delivery time?
A: For sample order: 2-3 weeks. For mass production: 4-6 weeks.
4. Q: Can you support customization?
A: Yes, the interface, FPC cable, backlight, cover glass, and touch panels can be customized.
5. Q: Can I get a lower price for TFT LCD?
A: Yes, cheaper price with bigger/larger quantities order.
6. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
7. Q: Can you provide the technical support?
A: Yes, We will provide detailed specifications and initialization code.
