| NO. |
ITEM |
SPECIFICATIONS |
| 1 |
Product Name |

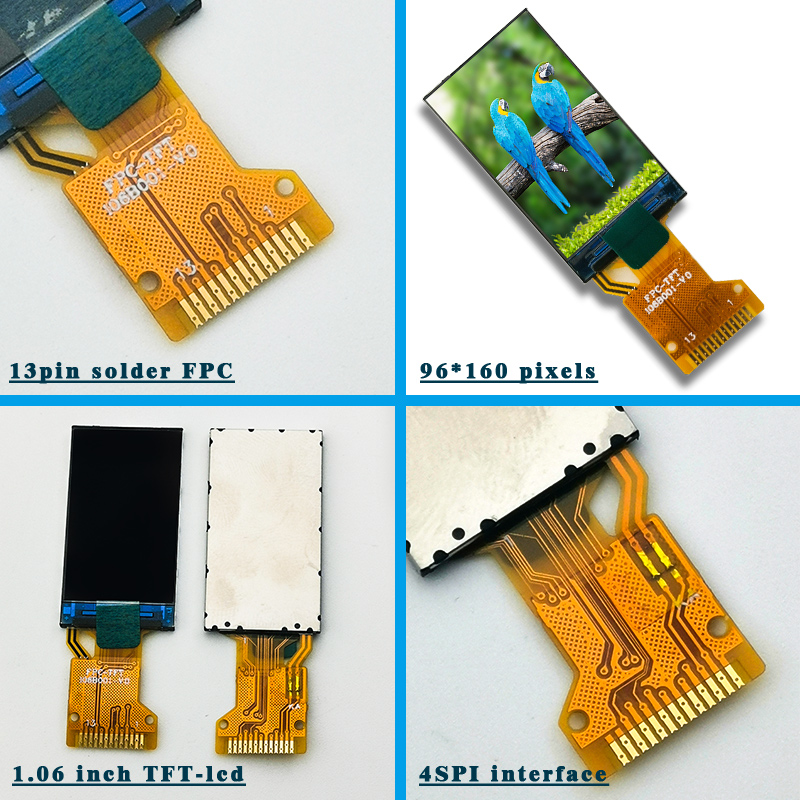

1.06 Inch TFT LCD |
| 2 |
LCD Type |
TN |
| 3 |
Resolution |
96x160 dots
|
| 4 |
Working Voltage |
2.8V (Typ.) |
| 5 |
Operating Temperature |
-20~+70℃ |
| 6 |
Storage Temperature |
-30~+80℃ |
| 7 |
FPC Connector |
13PIN, soldering type |
| 8 |
Pitch |
0.7 mm |
| 9 |
Driver IC(COG) |
ST7735S |
| 10 |
Interface |
4 SPI |
| 11 |
Backlight Type |
1-LED, White |
| 12 |
Power Consumption |
VF=3.0V, IF=20mA |
| 13 |
Outline Dimension |
16.12(H)*29.76(V)*1.52(D) mm
|
| 14 |
Active Area |
13.82*23.04 mm
|
TFT Screens ( 0.96 inch~10.1 inch )
We mainly develop TFT LCD screens of small-middle sizes, including 0.96", 1.06", 1.14", 1.28", 1.3", 1.44", 1.54", 1.69", 1.77", 1.83", 1.99", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 5", 5.5", 7", 8" and 10.1", etc.
Also, we can customize the FPC, Interface, Touch Panel, Cover Glass, and Backlight based on your demands.
Please let me know your requirements, we will suggest some models for your optional.
Applications:
-
Wearables: Smartwatches, fitness trackers, or health monitors.
-
Embedded Systems: DIY electronics, handheld devices, Arduino or Raspberry Pi projects, custom display panels for IoT applications.
-
Portable Devices: Small handheld gadgets like digital thermometers, small music players, or status screens for IoT systems.
-
Custom HMI is used in embedded applications to display information or interact with users in a compact form.
FAQ
1. Q: Where is your factory?
A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.
2. Q: Will you offer a free sample?
A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.
3. Q: What is the delivery time?
A: For sample order: 2-3 weeks. For mass production: 4-6 weeks.
4. Q: Can you support customization?
A: Yes, the interface, FPC cable, backlight, cover glass, and touch panels can be customized.
5. Q: Can I get a lower price for TFT LCD?
A: Yes, cheaper price with bigger/larger quantities order.
6. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
7. Q: Can you provide the technical support?
A: Yes, We will provide detailed specifications and initialization code.
