Basic Parameters:
| NO. | ITEM | SPECIFICATIONS |

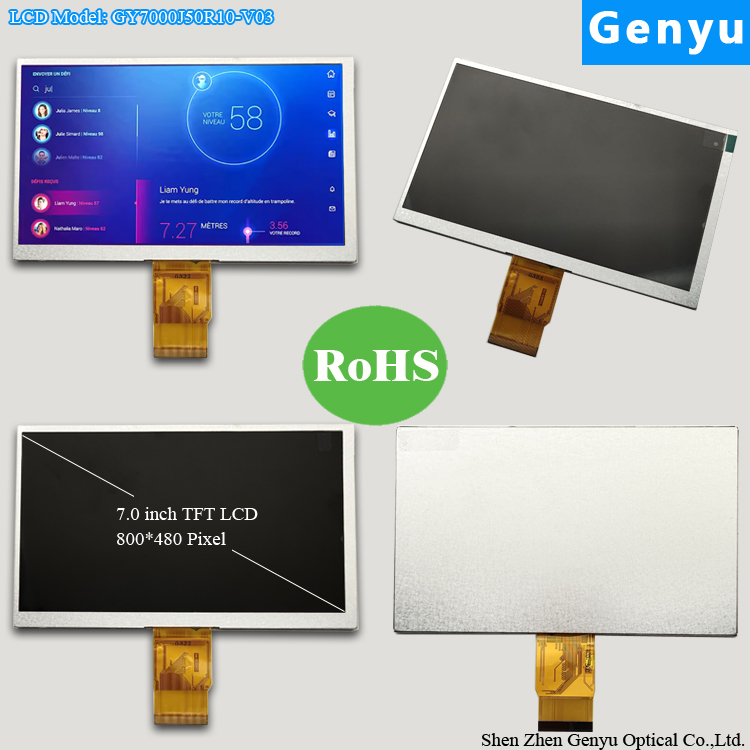

| 1 | Product Name | 7.0 Inch TFT LCD Display |
| 2 | Display Mode | TN, Transmissive |
| 3 | Viewing Angle | 6 O'clock |
| 4 | Pixel arrangement | RGB Vertical stripe |
| 5 | Resolution | 800 RGB(H) x 480(V) Dots |
| 6 | Operating Temperature | -20~+70℃ |
| 7 | Storage Temperature | -30~+80℃ |
| 8 | FPC Connector | 50PIN, socket type |
| 9 | Input Voltage | 3.3V |
| 10 | Backlight | 3*6 chips white LED |
| 11 | Interface | Parallel RGB 24-bit |
| 12 | Outline Dimension | 165(W) ×100(H) ×3.5(D) mm |
| 13 | Active Area | 153.84(W) × 85.63(H) mm |
TFT Screens ( 0.42 inch~10.11 inch ):
We mainly develop TFT LCD screens of small-middle sizes, sizes as below.
--Vertical Type: 0.85", 1.5", 1.69", 1.77", 1.83", 2.0", 2.2", 2.36", 2.4", 2.8", 2.95", 3.2", 3.5", 3.97", 4.3", 4.45", 4.3", 5.5", 7", 8".
---Horizontal Type: 0.42", 2.31", 3.5", 4.3", 5.0", 7.0", 10.1".
---Bar Type: 0.96", 1.05", 1.06", 1.08", 1.12", 1.14", 1.42", 1.45", 1.47", 1.65", 1.99", 2.25", 2.79", 3.13", 10.11".
---Square Type: 1.3", 1.44", 1.54", 3.95".
---Round Shape: 0.71", 0.9", 0.99", 1.28", 1.32", 1.45", 1.46", 1.6", 2.1", 2.76", 3.54".
---RTP
---CTP
---Backlight
Based on your demands, we can customize the FPC/ Backlight/ Touch Panel/ Brightness/ Interface.
Pls let me know your requirements, and we will provide some suggestions/options.
Common Uses:
Embedded Projects: Frequently used in DIY projects where a compact display is needed to show information or interact with a user interface.
Digital Photo Frames: Used for small, low-cost photo display solutions.
Custom Control Panels: Often integrated into custom user interfaces for machinery or robotics.
Car Dashboards or In-Car Displays: Common for custom-built in-vehicle systems.
Gaming Consoles: Used for small handheld devices or retro game emulators.
Kiosks or POS Systems: Ideal for small interactive kiosks, vending machines, or point-of-sale terminals.
Advantages:
Affordable: These displays are generally cost-effective, making them ideal for budget-conscious projects.
Good Size-Performance Ratio: At 7 inches, the display provides ample screen real estate without being too large for handheld or embedded projects.
Widespread Compatibility: The 800x480 resolution is supported by many microcontrollers and single-board computers, making it easy to interface with common platforms like Raspberry Pi, Arduino, or BeagleBone.
FAQ
1. Q: Where is your factory?
A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.
2. Q: Will you offer a free sample?
A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.
3. Q: What is the delivery time?
A: For sample order: 2-3 weeks. For mass production: 4-6 weeks.
4. Q: Can you support customization?
A: Yes, the interface, FPC cable, backlight, cover glass, and touch panels can be customized.
5. Q: Can I get a lower price for TFT LCD?
A: Yes, cheaper price with bigger/larger quantities order.
6. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
7. Q: Can you provide the technical support?
A: Yes, We will provide detailed specifications and initialization code.
