Basic Parameters:
| NO. |
ITEM |
SPECIFICATIONS |
| 1 |
Product Name |
3.97 Inch TFT LCD |
| 2 |

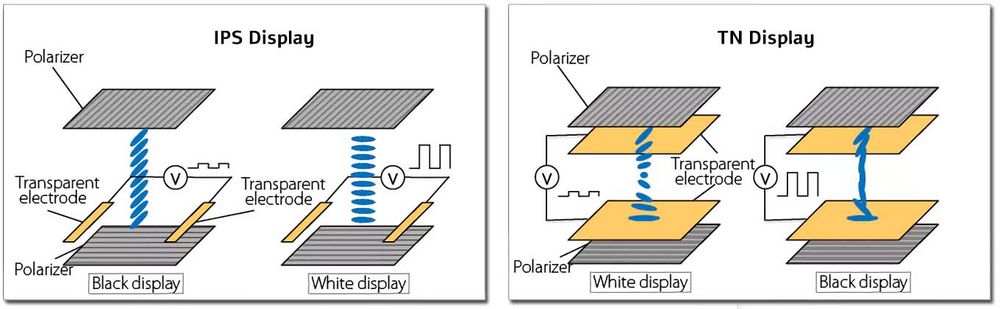

LCD Type |
IPS |
| 3 |
Viewing Angle |
Free |
| 4 |
Resolution |
480x800 dots
|
| 5 |
Operating Temperature |
-20~+70℃ |
| 6 |
FPC Connector |
24PIN, ZIF type |
| 7 |
Driver IC(COG) |
GC9503CV |
| 8 |
Interface |
MIPI |
| 9 |
Backlight Type |
8-LED, White, Parallel
|
| 10 |
Backlight Power |
Vf=24±2.4V, If=20mA
|
| 11 |
Outline Dimension |
55.44(H)* 96.17(V)* 2.30(D) mm
|
| 12 |
Active Area |
51.84(H)* 86.40(V) mm
|
TFT Screens ( 0.42 inch~10.11 inch ):
We mainly develop TFT LCD screens of small-middle sizes, sizes as below.
--Vertical Type: 0.85", 1.5", 1.69", 1.77", 1.83", 2.0", 2.2", 2.36", 2.4", 2.8", 2.95", 3.2", 3.5", 3.97", 4.3", 4.45", 4.3", 5.5", 7", 8".
---Horizontal Type: 0.42", 2.31", 3.5", 4.3", 5.0", 7.0", 10.1".
---Bar Type: 0.96", 1.05", 1.06", 1.08", 1.12", 1.14", 1.42", 1.45", 1.47", 1.65", 1.99", 2.25", 2.79", 3.13", 10.11".
---Square Type: 1.3", 1.44", 1.54", 3.95".
---Round Shape: 0.71", 0.9", 0.99", 1.28", 1.32", 1.45", 1.46", 1.6", 2.1", 2.76", 3.54".
---RTP
---CTP
---Backlight
We can customize the FPC/ Backlight/ Touch Panel/ Brightness/ Interface based on your demands.
Pls let me know your requirements, and we will provide some suggestions/options.
FAQ
1. Q: Where is your factory?
A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.
2. Q: Will you offer a free sample?
A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.
3. Q: What is the delivery time?
A: For sample order: 2-3 weeks. For mass production: 4-6 weeks.
4. Q: Can you support customization?
A: Yes, the interface, FPC cable, backlight, cover glass, and touch panels can be customized.
5. Q: Can I get a lower price for TFT LCD?
A: Yes, cheaper price with bigger/larger quantities order.
6. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
7. Q: Can you provide the technical support?
A: Yes, We will provide detailed specifications and initialization code.
