1.06 Inch TN TFT LCD Module 96x160 RGB SPI Display

Ask Lasest Price
Brand Name :	Genyu
Price :	$1.15-1.45

Add to Cart

Product Details
Company Profile

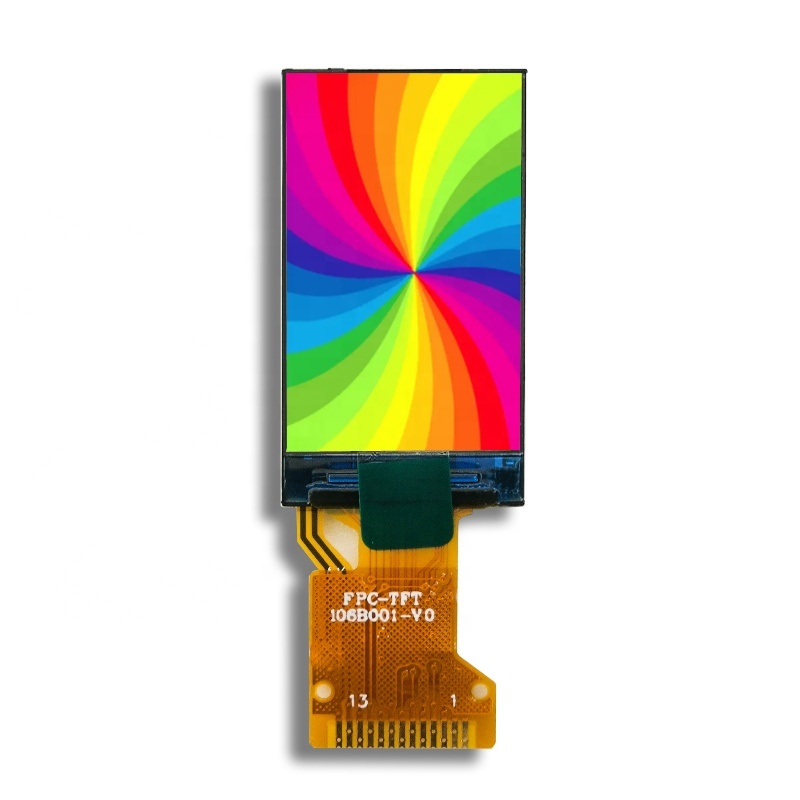

1.06 Inch TN TFT LCD Module 96x160 RGB SPI Display

1.06 Inch 96 RGBx160 Dots Thin Small TN Screen Display 13 Pins Soldering Type 4SPI TFT LCD Module

Product Description

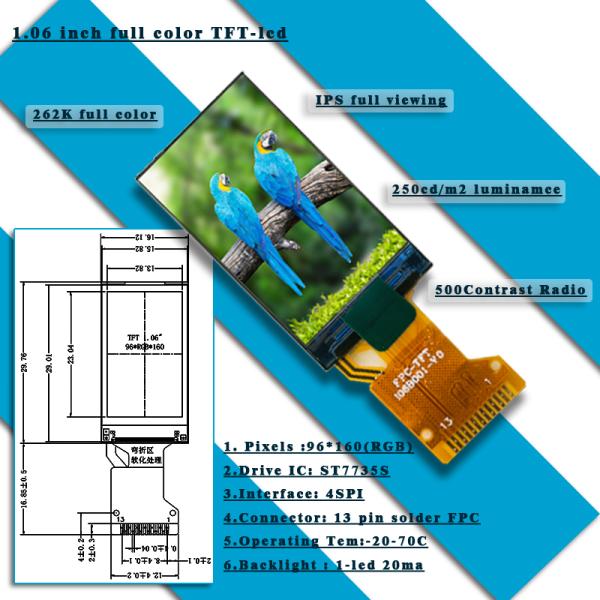

A. 1.06 inch TFT LCD Parameters:

Item	Specification	Unit
Module Size	16.12(H)29.76(V)1.52(D)	mm
Panel Active Area	13.82(W)*23.04(H)	mm
Pixel Pitch	48(H)3144(V)	μm
Pixel Arrangement	RGB stripe
Weight	TBD	g
Driver IC	ST7735S
Light Source	1 white led, 20mA
Interface	4 SPI
Operating Temperature	-20~+70	℃
Storage Temperature	-30~+80	℃
Panel Type	TN
Resolution	96xRGBx160 Dots	pixel
Display Mode	Normally White
Number of Colors	262K
Luminance	250	cd/m2
Contrast Ratio	500
Viewing Angle	3/6/9/12 O'clock, IPS

1.06 Inch TN TFT LCD Module 96x160 RGB SPI Display

B. 1.0 inch TFT LCD Screen:

1.06 Inch TN TFT LCD Module 96x160 RGB SPI Display

C. 0.96 Inch TFT LCD Display:

1.06 Inch TN TFT LCD Module 96x160 RGB SPI Display

Company Information

Why Choose Us?

Whatever you need we'll be able to meet it, such as the following:

a) Own COG, COB, LCD Backlight Production Lines, Competitive Price Accepted;
b) Solid and Reliable R&D Team, Free Technical Support Provided;

c) Double 100% Test/Inspection Before Shipping, Quality Guaranteed;
d) Fast Leading Time, Cheap Freight/Transportation Fee;
e) Good After Sales Services in 24 Hours.
f) The Warranty Period of the Products is Usually 12 Months.

Packaging & Shipping

Payment
T/T, Western Union. Paypal and etc...

Delivery
Items will be shipped within 3 working days after payment is received.

By DHL/UPS/FedEx: about 5-7 working days.
By EMS/POSTNL: about 15-20 working days.

Packaging

1. Electrostatic Bag/ Anti-static Trays/ Plastic Pallet/ Air Bubble Film...

2. Suitable Carton Boxes.

The packing is able to withstand rough handling.

1.06 Inch TN TFT LCD Module 96x160 RGB SPI Display

FAQ1

1. Q: Are you a manufactory or trade company?

A. We are a factory located in Shenzhen and Jiangxi, which specializes in TN, HTN, STN, FSTN, VA monochrome LCD, Micro OLED Screen, Color TFT Display Panels, LED Backlights, and LCD Modules.

2. Q: Will you offer a free sample?

A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.

In regular cooperation, samples can be free.

3. Q: What is the delivery time?

A: For sample order: 2-3 weeks. For mass production: 4-6 weeks.

4. Q: Can you custom the LCD or touch screen for me?

A: Yes, we can provide custom services.

For the LCD display, backlight brightness and FPC cable can be customized.

For the touch screen, we can customize the whole touch panel, such as the color, shape, cover thickness, and so on according to the customer's requirements.

5. Q: Which applications your products are mainly used for?

A: Embedded system, Intercom system, Biometrix, HMI, Smart home, Robert, Hand-held PDA, Aftermarket automotive and etc.
